Electrical Characteristics |
Thermal Characteristics |
||
Max Power Pmax |
100W |
Temperature coefficient of Pmax |
-0.38%/℃ |
Max Power voltage Vmp |
16V |
Temperature coefficient of Voc |
-60.5mV/℃ |
Max Power Current Imp |
6.25A |
Temperature coefficient of Isc |
2.2mA/℃ |
Open Circuit Voltage Voc |
19.2V |
NOTC |
47℃+/-2℃ |
Short Circuit Current Isc |
6.875A |
Operating Temperature |
-20℃ – +65℃ |
Maximum System Voltage |
600V |
Mechanical Characteristics |
|
Number of cells in Series |
32 |
Dimension |
1050X530X2.5mm |
Cell size |
125X125mm |
Weight |
2.04kg |
Max Power tolerance |
±3% |
Cable |
0.9 meter 2X2.5mm |
Description

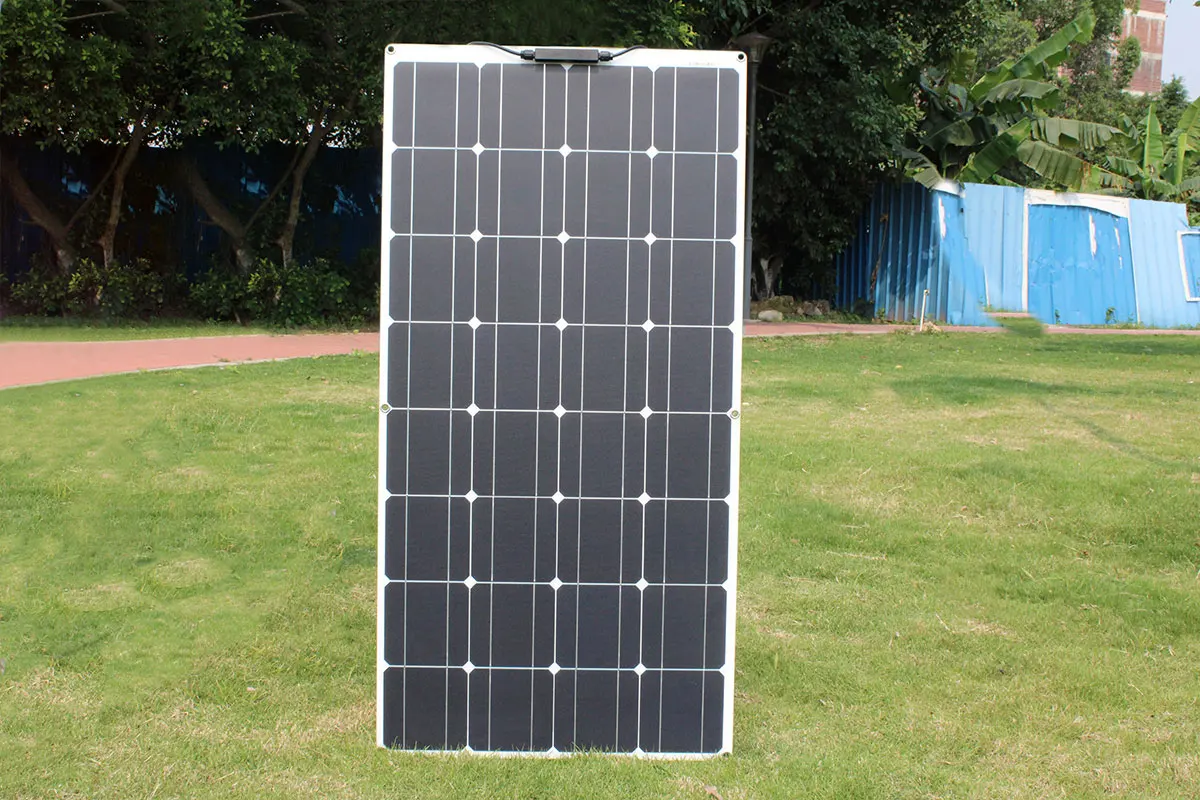

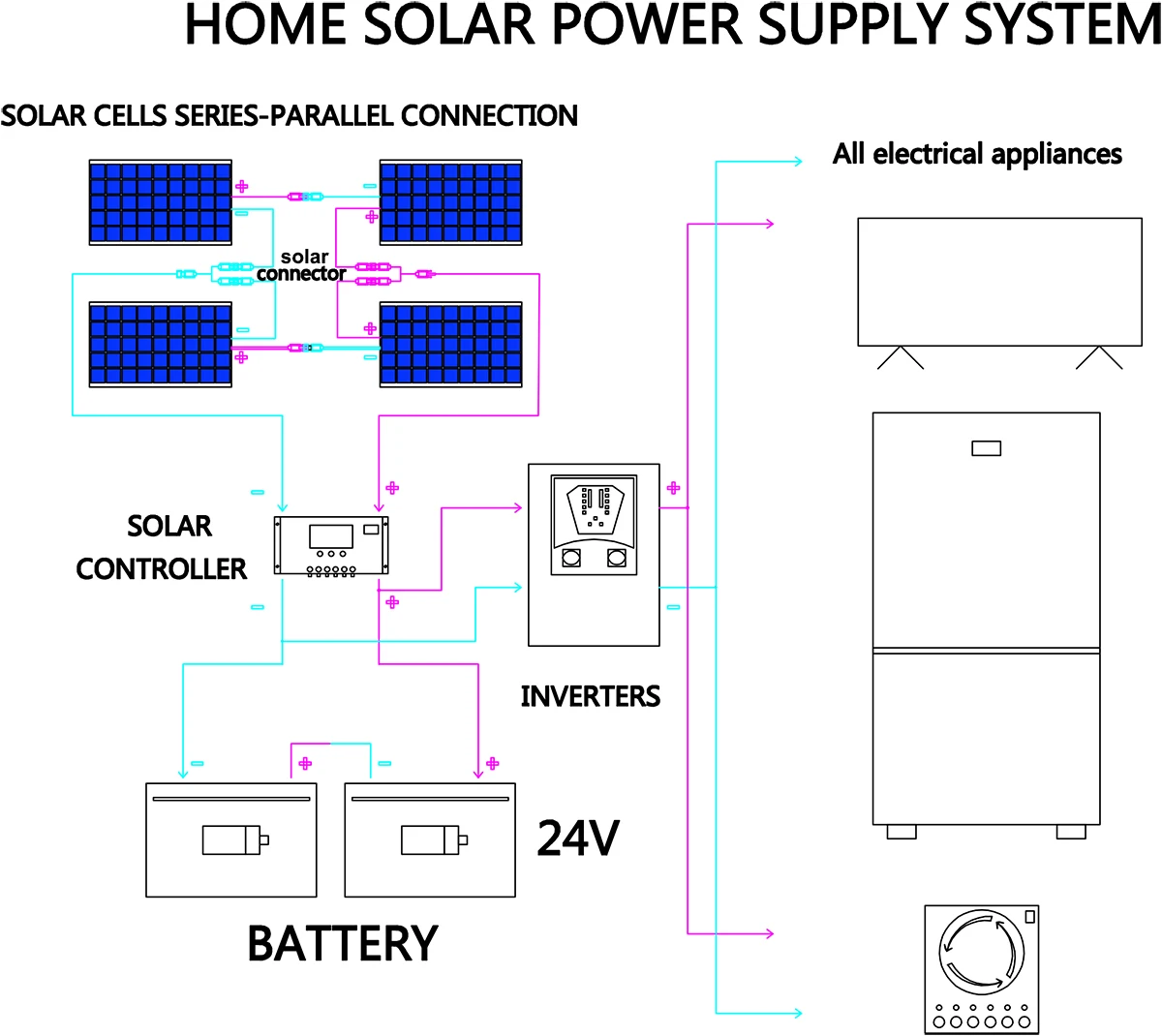

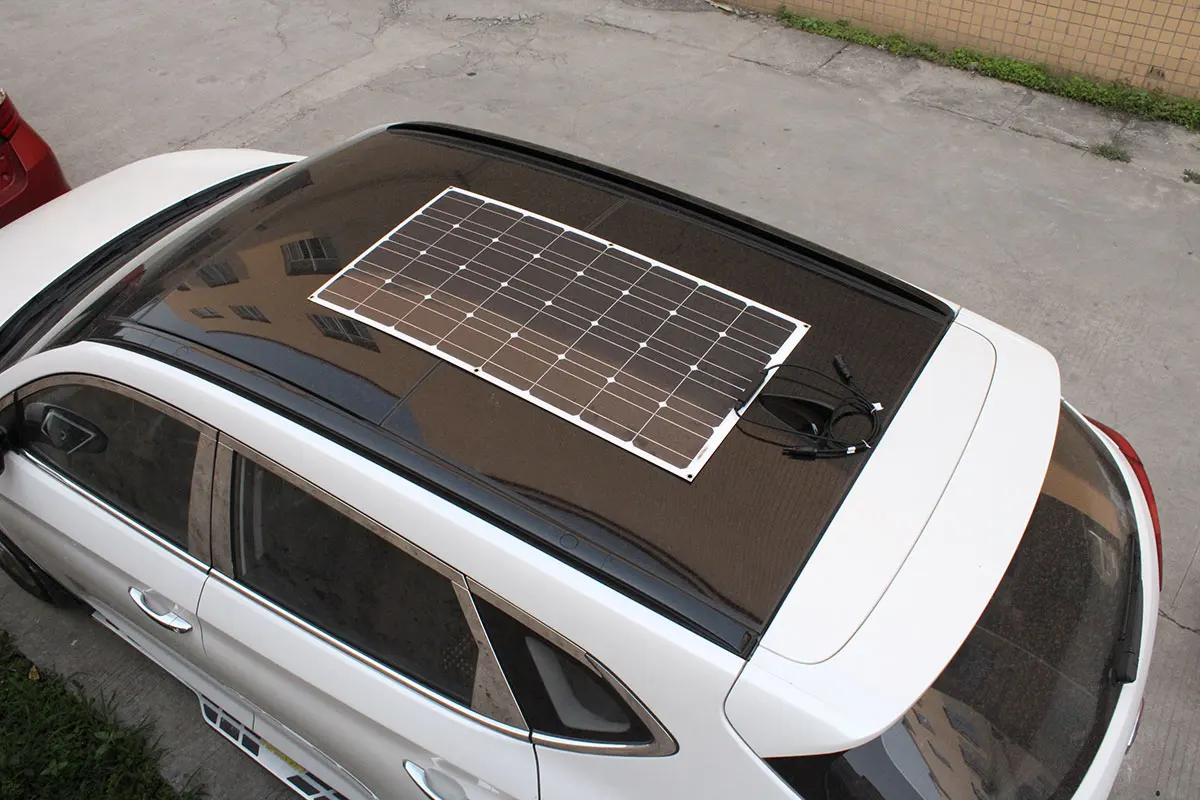

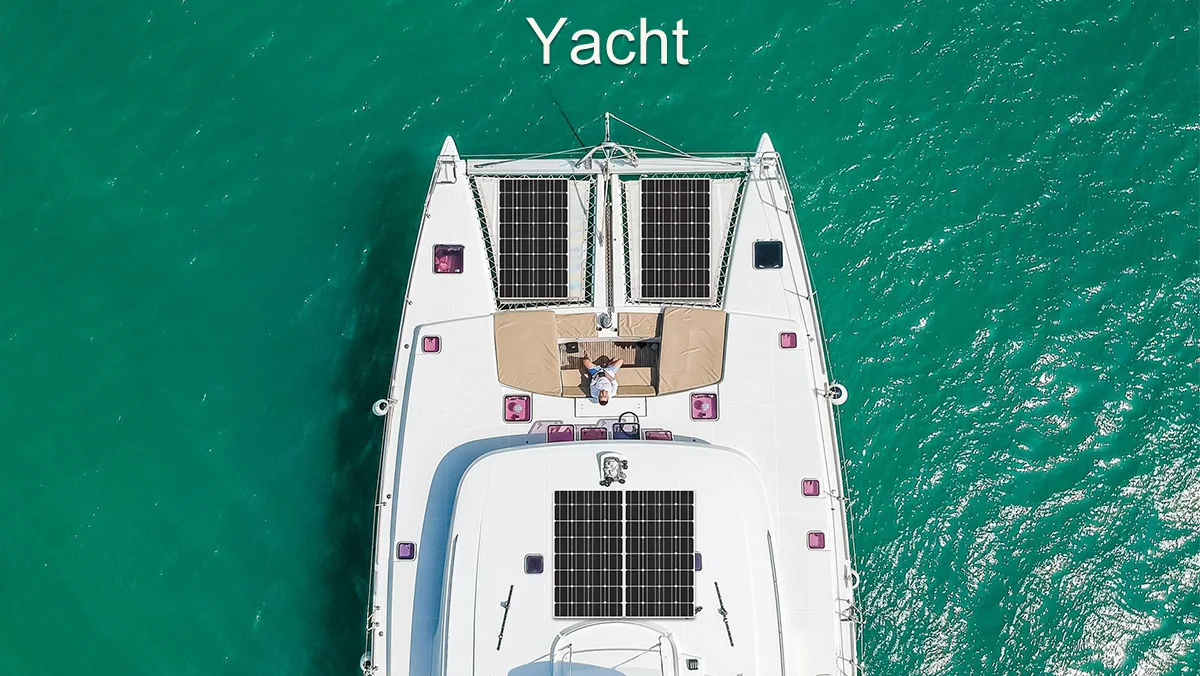

Made from Monocrystalline solar cell, the 18V100W Flexible Solar Panel is light weight, just 1.7kg, bendable up to 30 degree for curved surface, with waterproof connector, just plug and play. The flexible solar panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panels can charge the 12V & 24V Gel battery, lead acid battery, flood battery or charge the 3.7V, 6V, 9V lithium battery and other DC devices with a regulator.
Advantages

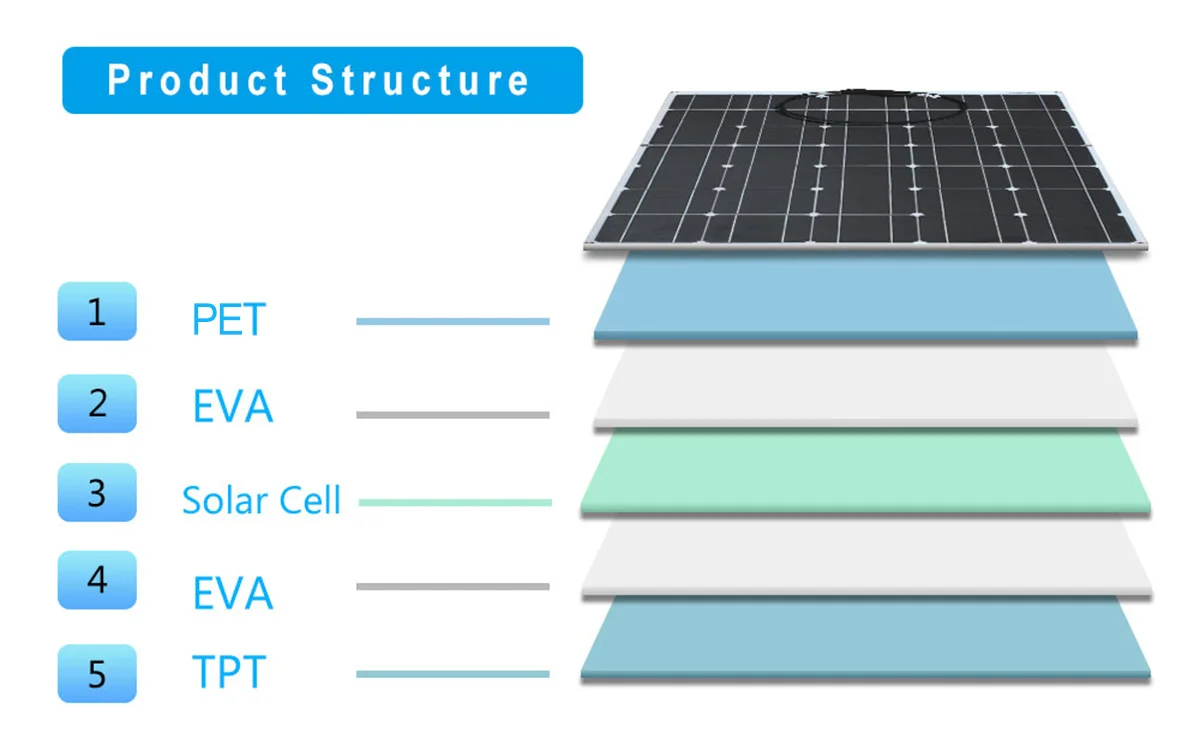

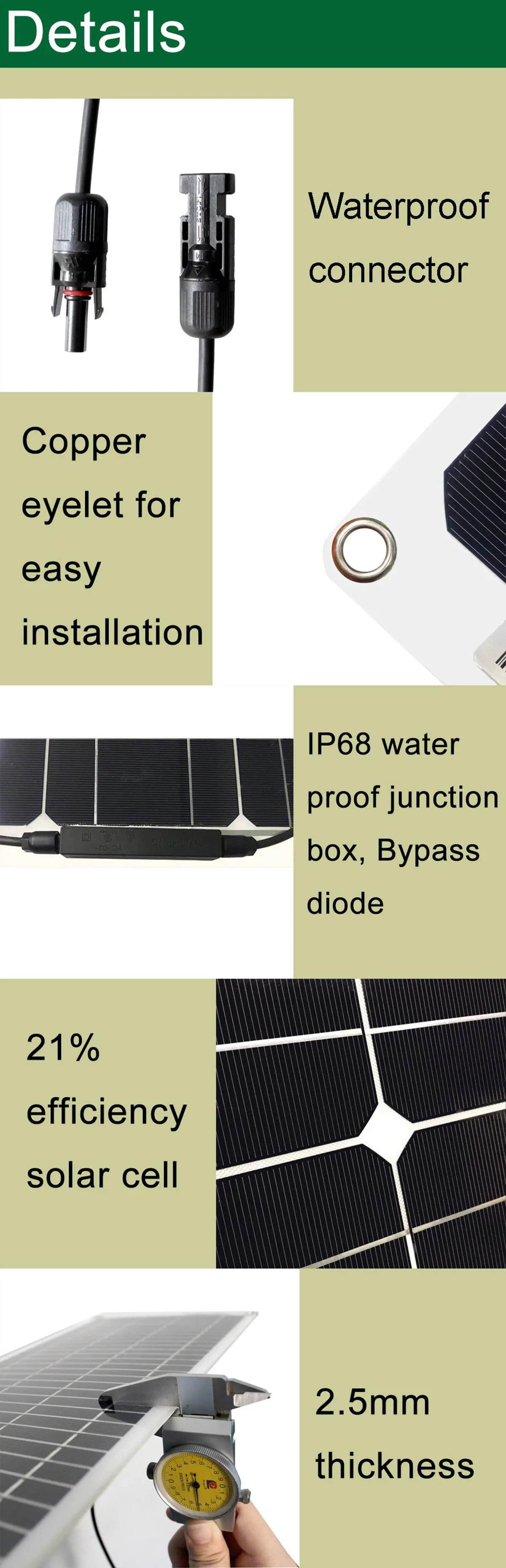

Super Lightweight: With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze.
High Efficient: High efficiency solar cell: Monocrystalline 21%.
Extremely Flexible: This panel is capable of
meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.
Super Thin: Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.
Protection: Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
Highly Durable: Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.
Easy to install: Metal holes in the corners of the product for fixing screws and mounting.
